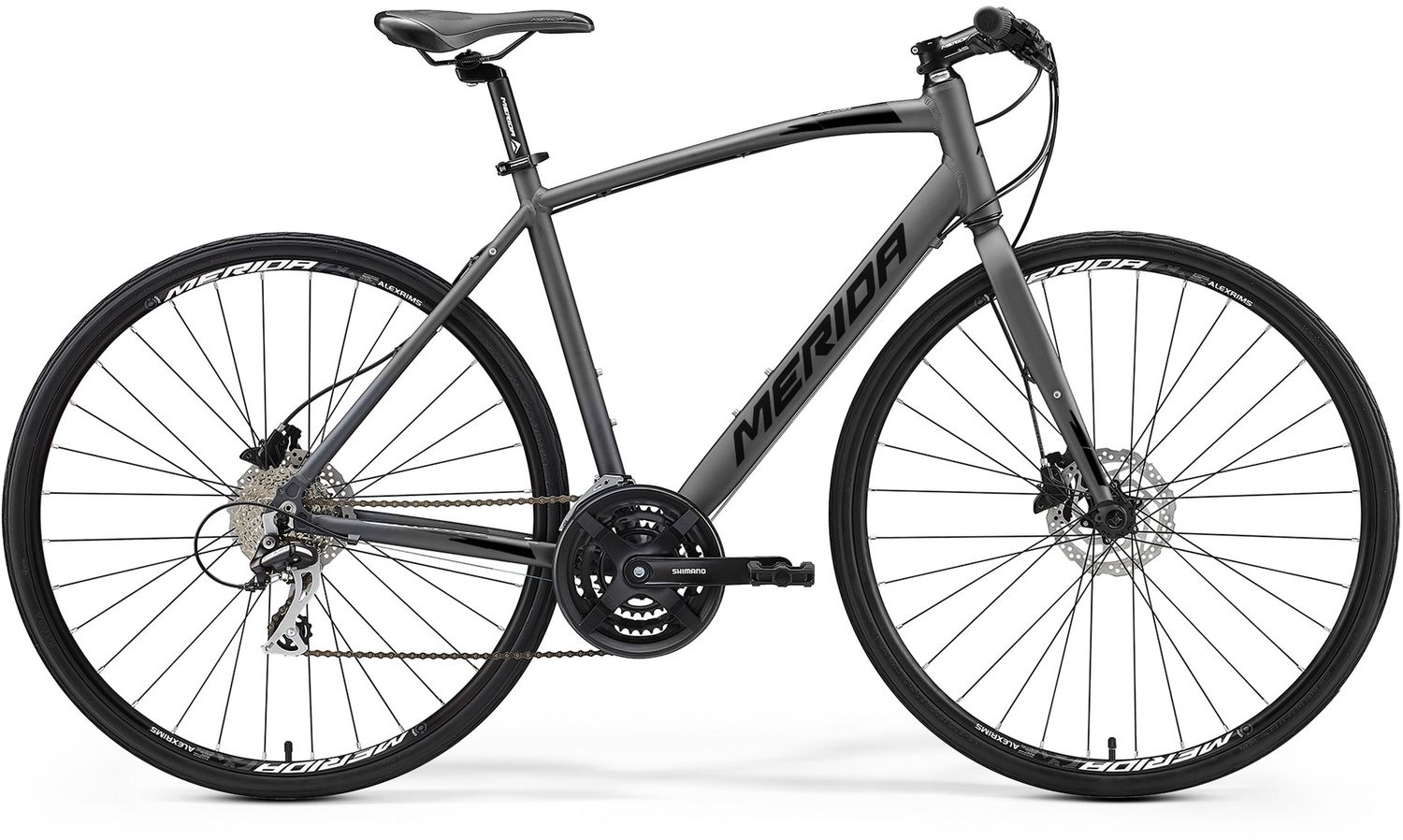

Merida Speeder 20D
Product Details
Brand:
MERIDA
Highlights:
- Hydraulic disc brakes
- Shimano chainset
- Shimano hubs
An everyday commuting or leisure bike with 24 speed Shimano gears and EZ fire shifters. No corners cut, the specification includes a Shimano chainset, Shimano hubs and hydraulic disc brakes.
Specification
Promotion Ribbon
- Price Crash
Frame
- 6061 double butted aluminium frame with mudguard and rack mounts
Fork
- Speeder Rigid Steel
Gears
- 24
Shifters
- MicroSHIFT TS39
Front Derailleur
- Shimano FD-TY710
Rear Derailleur
- Shimano RD-M360
Bottom Bracket
- FSA TH-7420ST, Cartridge Bearing
Chain
- Sunrace M84
Chainset
- Shimano TY301; 48-38-28 tooth chainset. Crank length: 170mm (XS,S/M), 175mm (L,XL)
Cassette
- Sunrace CSM558AU; 11-32 teeth; 8 speed
Brake Lever
- Power DS-100HT
Front Brake
- Power DS-100HT 2 piston hydraulic disc brake caliper with Shimano RT10 160mm rotor
Rear Brake
- Power DS-100HT 2 piston hydraulic disc brake caliper with Shimano RT10 160mm rotor
Grip
- Merida EC
Handlebar
- Merida CC; aluminium; 600mm wide; flat
Stem
- Merida Speed; aluminium; 31.8mm diameter - Stem length: 100mm (all sizes)
Head Set
- FSA NO.10P
Pedal
- VP Components, VPE-891
Saddle
- Merida D1-072
Seat Post
- Merida CC; aluminium; 27.2mm diameter; 15mm lay back
Wheel Size
- 700c
Rims
- Merida CC; 17mm inner rim width; aluminium
Spokes
- Black steel
Front Hub
- Shimano TX505; 100x9mm; 32 spokes; Center lock
Rear Hub
- Shimano TX505; 135x9mm; 32 spokes; Center lock
Front Tyre
- Merida K1029; 700 x 30C; wire bead
Rear Tyre
- Merida K1029; 700 x 30C; wire bead
Colour
- Anthracite/Black
Season
- 2023
Geometry
