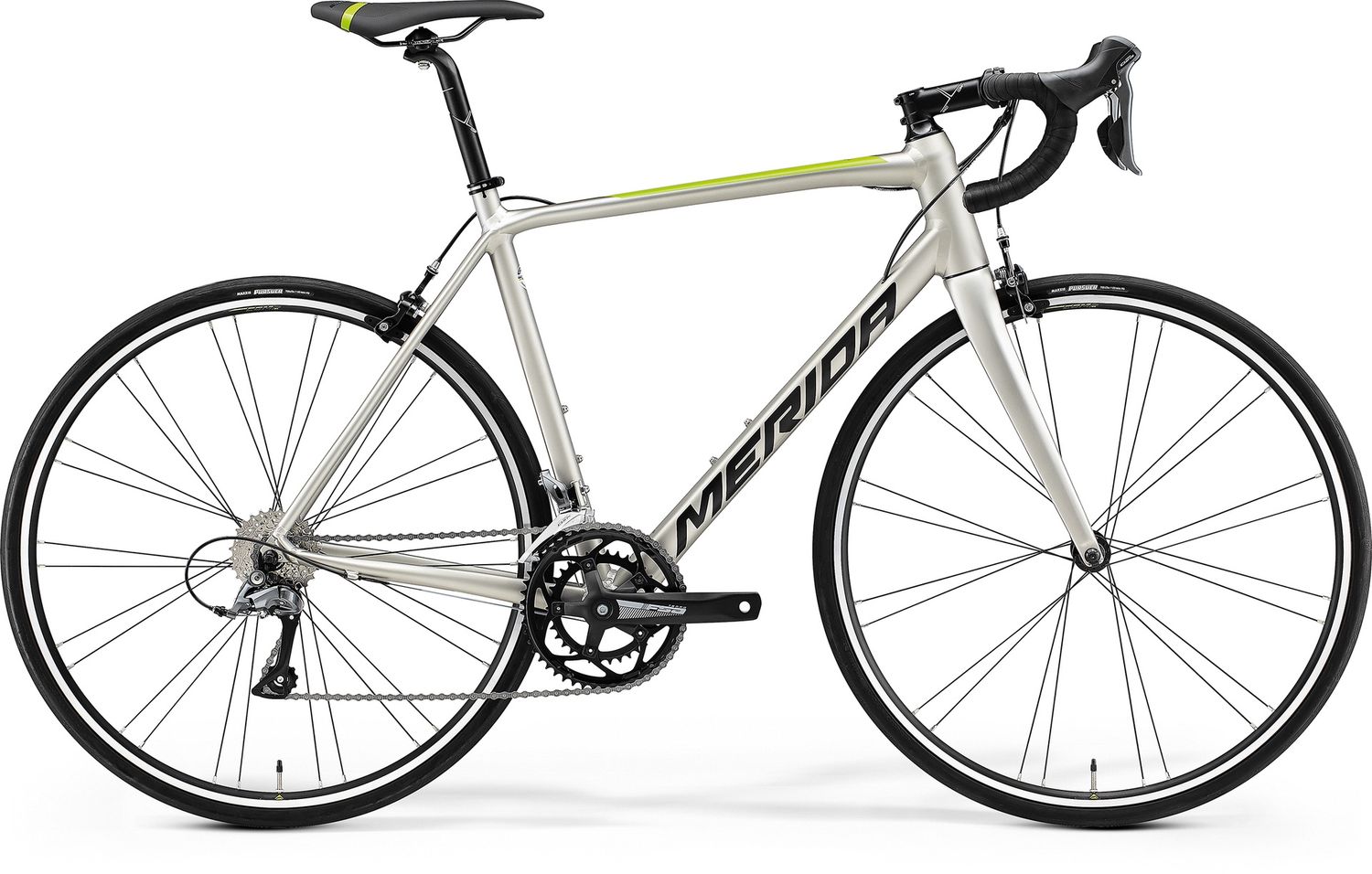

Merida Scultura Rim 100
Product Details
Brand:
MERIDA
Highlights:
- Lightweight aluminium frame
- Full carbon tapered fork
- Shimano Claris gearing
- FSA Tempo compact chainset
- Dual pivot brakes
- Maxxis Pursuer 25c Kevlar bead folding tyres
The Scultura has always been the powerhouse of any Merida sponsored or supported ProTour teams powering them to world tour stage victories. The Lite frame uses cutting edge aluminium technology - 6066 series triple butted and hydroformed aluminium tubing with smooth welding to deliver a light responsive frame. The tapered full carbon fork delivers precise steering.
Specification
Promotion Ribbon
- Extra 10% Off
Frame
- Lite BSA - 6066 triple butted and hydroformed aluminium with smooth welding. Tapered head tube. BSA BB standard, 9mm QR axle standard, Internal cable routing. Maximum tyre clearance 700 x 25c
Fork
- Scultura Rim CF2; full carbon. Tapered steerer. Max tyre size: 700 x 25c
Gears
- 16
Shifters
- Shimano Claris
Front Derailleur
- Shimano Claris
Rear Derailleur
- Shimano Claris; GS
Bottom Bracket
- FSA TH-7420ST, Cartridge Bearing
Chain
- KMC M700
Chainset
- FSA Tempo; 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (S/M,M/L), 175mm (L/XL)
Cassette
- Sunrace CS8; 11-28 teeth; 8 speed
Brake Lever
- Shimano Claris
Front Brake
- Dual Pivot calliper
Rear Brake
- Dual Pivot calliper
Grip
- Merida Road Comp
Handlebar
- Merida Expert SL, aluminium; Width: 380mm(XXS), 400mm (XS-S), 420mm (S/M-M/L), 440mm (L-XL)
Stem
- Merida Comp CC; aluminium; 31.8mm diameter; -6 degree rise - Stem length: 80mm (XXS/XS), 90mm (S), 100mm (SM/ML), 110mm (L/XL)
Head Set
- Merida M2339 Neck
Pedal
- Not included
Saddle
- Merida Comp SL with V-mount
Seat Post
- Merida Comp CC; aluminium; 27.2mm diameter; 5mm lay back
Wheel Size
- 700c
Rims
- Merida Comp SL; 17mm inner rim width; 20mm rim depth; aluminium
Spokes
- Black stainless
Front Hub
- Road sealed bearing; 100x9mm; 24 spokes; Quick Release
Rear Hub
- Road sealed bearing; 130x9mm; 28 spokes; Quick Release
Front Tyre
- Maxxis Pursuer; 700 x 25C; Kevlar bead; folding
Rear Tyre
- Maxxis Pursuer; 700 x 25C; Kevlar bead; folding
Colour
- Titanium/Green
Geometry
