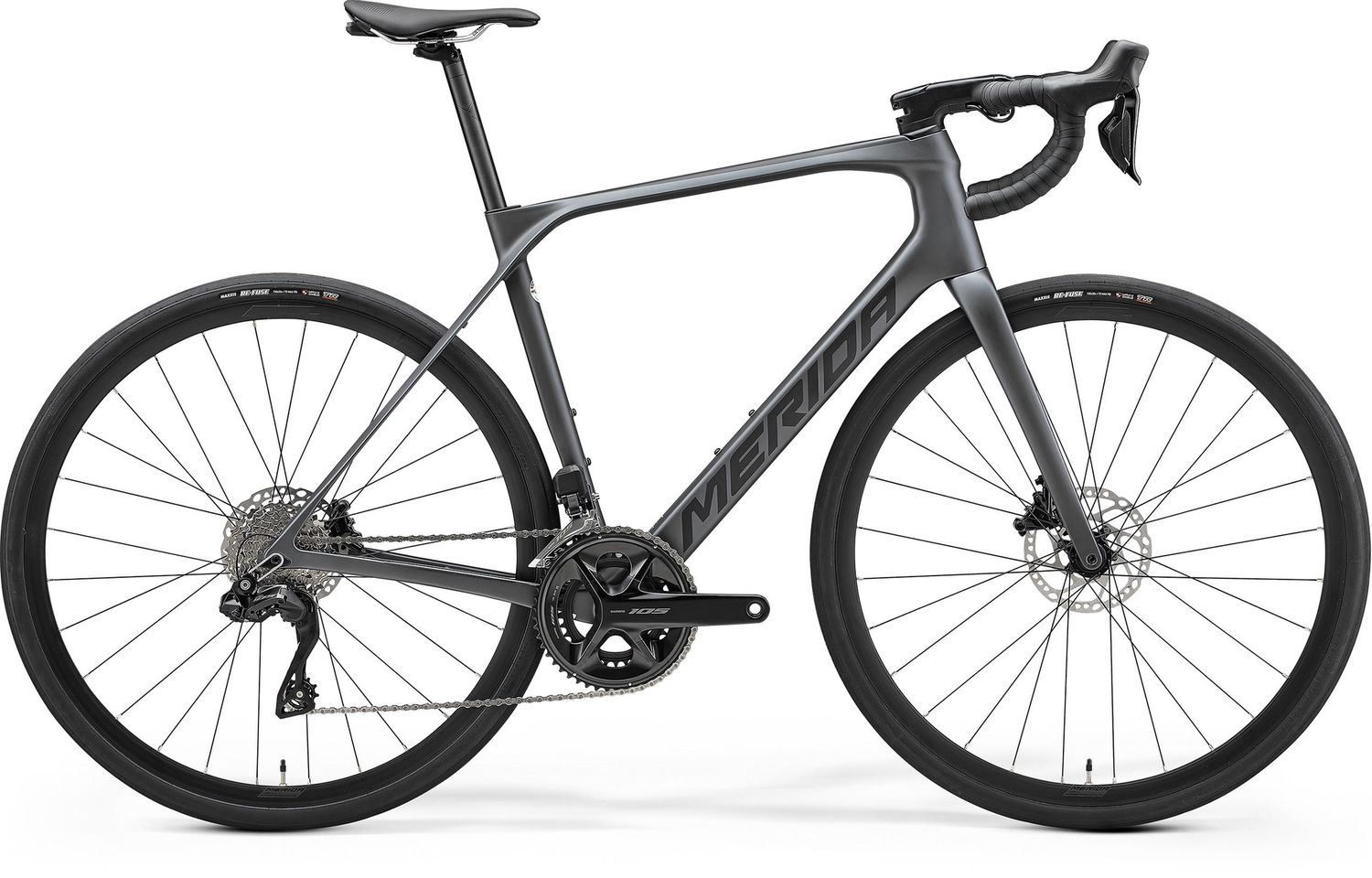

Merida Scultura Endurance 6000

£2 750.00
Sold out
Size
Please choose
Colour
Please choose
Save this product for later
Have questions?
Share this product with your friends
Merida Scultura Endurance 6000
Product Details
Brand: MERIDA
Highlights:
  • Comfortable, confidence inspiring geometry
  • Carbon frame and fork
  • 2 x 12 Shimano 105 Di2 transmission
  • Maxxis Re-Fuse 32c tyres
  • Shimano 105 chainset
  • Carbon seat post
Carbon tarmac endurance bike with 2 x 12 Shimano 105 Di2, electronic shifting



Sitting between the Silex and Scultura in the Merida road range the Scultura Endurance is aimed at tarmac adventure riding. The Scultura Endurance geometry is perfectly suited to riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike. Endowed with a modern frame design and comfort-orientated geometry the Scultura Endurance has a longer head tube creating a more upright and comfort-orientated seating position. The slacker head tube angle and slightly longer wheelbase give the bike more stability at speed To increase frame stiffness and steering precision the Scultura Endurance uses 12mm bolt through axles and a full carbon tapered fork. There’s plenty of tyre clearance (up to 35c, or 32c if you are running mudguards), larger volume tyres can be run at lower pressures and provide more comfort even on the most pothole littered country lanes. Merida have used plenty of neat touches such as routing shifting and brake cables through the headset to declutter the cockpit. Even the seat clamp is hidden and the rear seat stay bridge can be removed if it isn’t used to mount mudguards. All Scultura Endurance are equipped with powerful hydraulic disc brakes. Calipers are mounted via the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.

Specification

Frame
  • CF3 carbon, Nano Matrix for impact resistance. Internal cable routing, 12mm through axle, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2" headtube. Fully integrated seat clamp. Max tyre size 700 x 35c (700 x 32c with mudguard)
Fork
  • Scultura Endurance CF3 Disc; full carbon, tapered steerer. Disc Cooler; Max tyre size: 700 x 35c (700 x 32c with mudguard)
Gears
  • 24
Shifters
  • Shimano 105 disc Di2
Front Derailleur
  • Shimano 105 Di2
Rear Derailleur
  • Shimano 105 Di2
Bottom Bracket
  • Shimano BB71-41B, Pressfit 86.5
Chain
  • Shimano CN-M6100-12
Chainset
  • Shimano 105; FCR7100, 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (M,L), 175mm (XL)
Cassette
  • Shimano CS-R7101; 11-34 teeth; 12 speed
Brake Lever
  • Shimano 105
Front Brake
  • Shimano 105 hydraulic disc brake caliper with Shimano RT64 160mm rotor
Rear Brake
  • Shimano 105 hydraulic disc brake caliper with Shimano RT64 160mm rotor
Grip
  • Merida Road Expert
Handlebar
  • Merida Expert SLII; aluminium; Width: 380mm(XXS), 400mm (XS,S), 420mm (M,L), 440mm (XL)
Stem
  • FSA SMR ACR; aluminium; -6 degree rise. Length 90mm (XXS,XS), 100mm (S,M), 110mm (L), 120mm (XL)
Head Set
  • FSA ACR
Pedal
  • Not included
Saddle
  • Merida Expert SL with V-mount; including Merida minitool
Seat Post
  • Merida Expert CC; 27.2mm diameter; 15mm lay back; Carbon
Wheel Size
  • 700c
Rims
  • Merida Expert SLII; 23mm inner rim width; 25mm rim depth; aluminium; Tubeless ready (tubeless tape and valves not included)
Spokes
  • Double Butted Black stainless
Front Hub
  • Joytech D981SB; 100x12mm; 28 spokes; Centerlock with Merida Comp SL axle
Rear Hub
  • Joytech D872SB; 12x142mm; 28 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key
Front Tyre
  • Maxxis Re-Fuse; 700 x 32C; Kevlar bead, folding
Rear Tyre
  • Maxxis Re-Fuse; 700 x 32C; Kevlar bead, folding



Geometry
