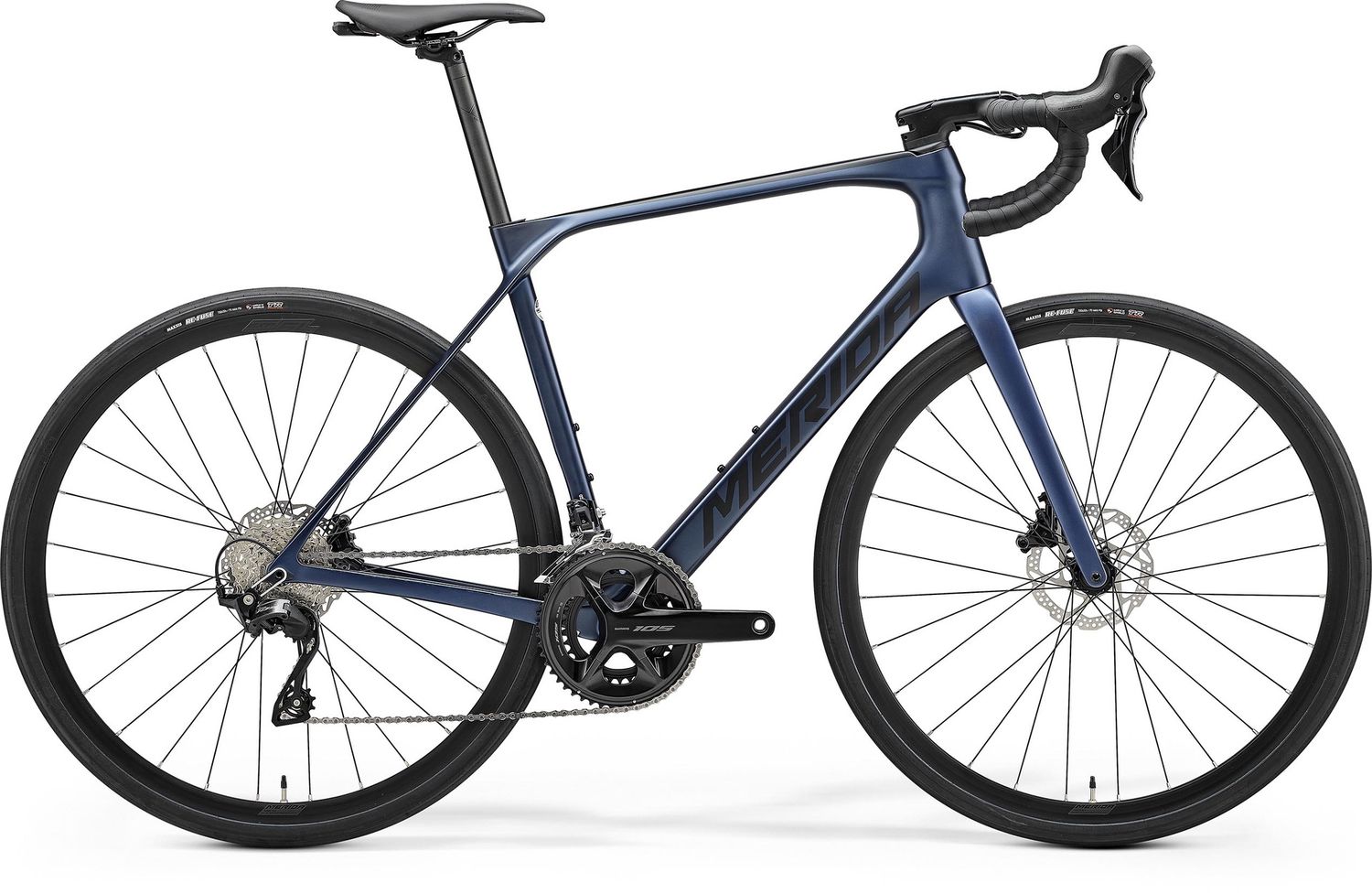

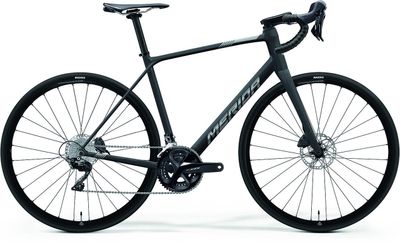

Merida Scultura Endurance 4000
- Comfortable, confidence inspiring geometry
- Carbon frame and fork
- 2 x 12 Shimano 105 transmission with Shimano 105 compact chainset
- Shimano 105 hydraulic disc brakes
- Carbon seat post
- Maxxis Re-Fuse 32c tyres
Sitting between the Silex and Scultura in the Merida road range the Scultura Endurance is aimed at tarmac adventure riding. The Scultura Endurance geometry is perfectly suited to riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike. Endowed with a modern frame design and comfort-orientated geometry the Scultura Endurance has a longer head tube creating a more upright and comfort-orientated seating position. The slacker head tube angle and slightly longer wheelbase give the bike more stability at speed To increase frame stiffness and steering precision the Scultura Endurance uses 12mm bolt through axles and a full carbon tapered fork. There’s plenty of tyre clearance (up to 35c, or 32c if you are running mudguards), larger volume tyres can be run at lower pressures and provide more comfort even on the most pothole littered country lanes. Merida have used plenty of neat touches such as routing shifting and brake cables through the headset to declutter the cockpit. All Scultura Endurance are equipped with powerful hydraulic disc brakes. Calipers are mounted via the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.
Specification
- CF3 carbon, Nano Matrix for impact resistance. Internal cable routing, 142 x12mm axle standard, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2" headtube. Fully integrated seat clamp. Max tyre size 700 x 35c (700 x 32c with mudguard)
- Scultura Endurance CF3 Disc; full carbon, tapered steerer. Disc Cooler; Max tyre size: 700 x 35c (700 x 32c with mudguard)
- 24
- Shimano 105 disc
- Shimano 105
- Shimano 105; GS
- SM-BB71-41B, Pressfit 86.5
- Shimano CN-M6100-12
- Shimano 105; FCR7100, 50-34 tooth chainset; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)
- Shimano CS-R7101; 11-34 teeth; 12 speed
- Shimano 105
- Shimano 105; Hydraulic disc brake caliper with Shimano RT54; 160mm rotor
- Shimano 105; Hydraulic disc brake caliper with Shimano RT54; 160mm rotor
- Merida Expert
- Merida Expert SLII; aluminium; 380mm (XXS-XS-S), 400mm (M-L), 420mm (XL)
- Merida Expert SL 2PII; aluminium; -9 degree rise - Length- 90mm (XXS-XS-S), 100mm (M), 110mm (L/XL)
- Merida Team SL (SE-301 neck)
- Merida Comp SL; V-mount - made with 25% recycled material
- Merida Expert CC; 27.2mm diameter; 15mm layback; Carbon
- 700c
- Merida Expert SLII; 23mm inner rim width; 25mm rim depth; aluminium; Tubeless ready (tubeless tape and valves not included)
- Double Butted Black stainless
- Shimano HB-TC500; 100 x 12mm; 28 spoke; Centerlock
- Shimano FH-TC500-HL; 142 x 12mm; 28 spoke; Centerlock
- Maxxis RE-FUSE; 700 x 32C; Kevlar bead
- Maxxis RE-FUSE; 700 x 32C; Kevlar bead
- Silk Blue/Black
- 2025
