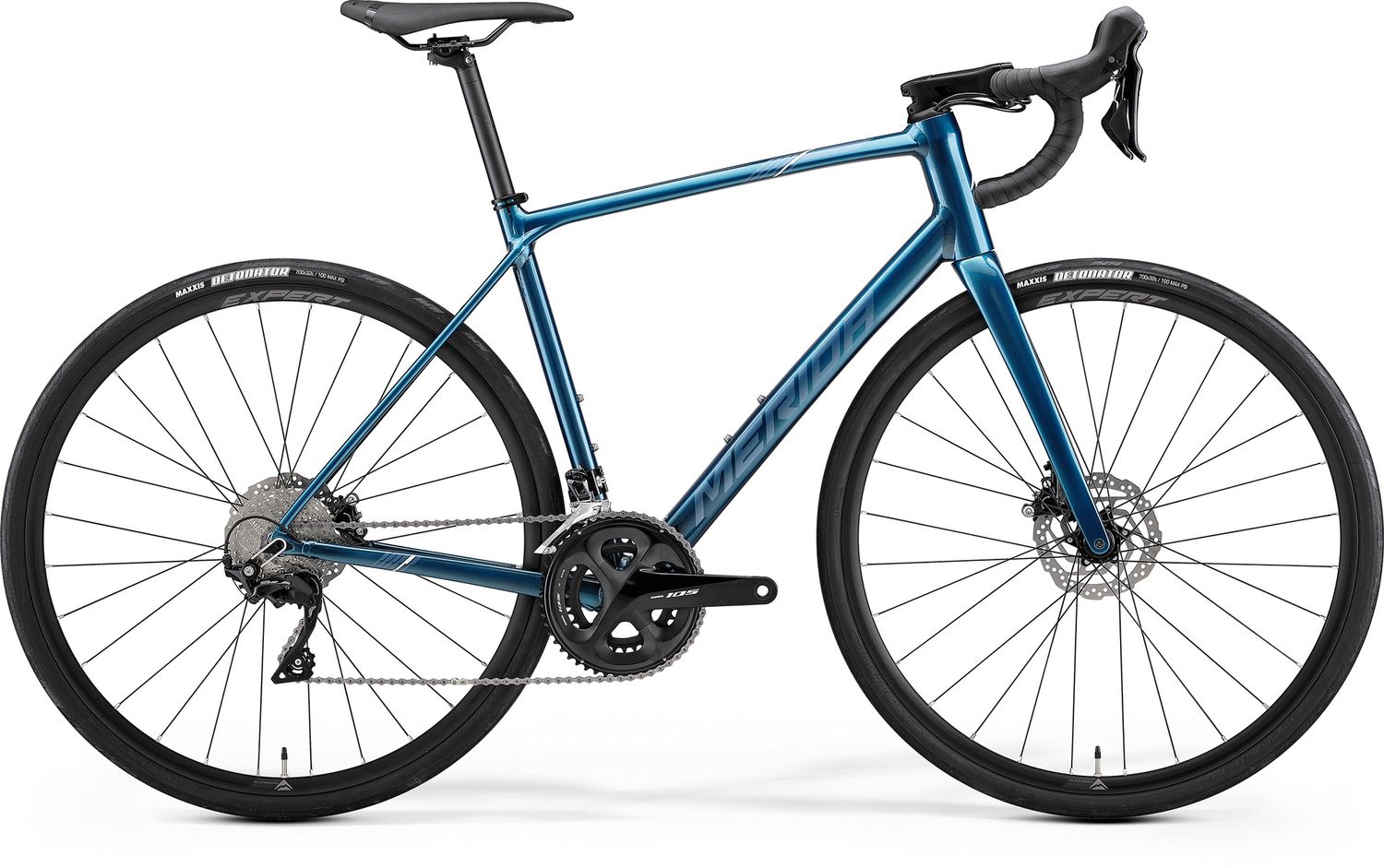

Merida Scultura Endurance 400

£1 458.33
Sold out
Size
Please choose
Colour
Please choose
Save this product for later
Have questions?
Share this product with your friends
Merida Scultura Endurance 400
Product Details
Brand: MERIDA
Highlights:
  • Comfortable, confidence inspiring geometry
  • Lightweight triple butted 6066 aluminium frame
  • Full carbon tapered fork
  • 2 x 12 Shimano 105 transmission with Shimano 105 compact chainset
  • Shimano 105 hydraulic disc brakes
  • Carbon seat post
Aluminium tarmac endurance bike with Shimano 105 2 x 12 drivetrain and hydraulic disc brakes.



Sitting between the Silex and Scultura in the Merida road range the Scultura Endurance is aimed at tarmac adventure riding. The Scultura Endurance geometry is perfectly suited to riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike. Endowed with a modern frame design and comfort-orientated geometry the Scultura Endurance has a longer head tube creating a more upright and comfort-orientated seating position. The slacker head tube angle and slightly longer wheelbase give the bike more stability at speed To increase frame stiffness and steering precision the Scultura Endurance uses 12mm bolt through axles and a full carbon tapered fork. There’s plenty of tyre clearance (up to 35c, or 32c if you are running mudguards), larger volume tyres can be run at lower pressures and provide more comfort even on the most pothole littered country lanes. Merida have used plenty of neat touches such as routing shifting and brake cables through the headset to declutter the cockpit. All Scultura Endurance are equipped with powerful hydraulic disc brakes. Calipers are mounted via the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.

Specification

Frame
  • Lite Aluminium, endurance geometry. Internal cable routing, 142 x12mm axle standard, BB86, flat mount rear brakes, 1 1/2" headtube. Max tyre - 35c (32c with mudguards)
Fork
  • Scultura Endurance CF3 Disc; full carbon, tapered steerer. Disc Cooler; Max tyre size: 700 x 35c (700 x 32c with mudguard)
Gears
  • 24
Shifters
  • Shimano 105 disc
Front Derailleur
  • Shimano 105
Rear Derailleur
  • Shimano 105; GS
Bottom Bracket
  • SM-BB71-41B, Pressfit 86.5
Chain
  • Shimano CN-M6100-12
Chainset
  • Shimano 105; FCR7100, 50-34 tooth chainset; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)
Cassette
  • Shimano CS-R7101; 11-34 teeth; 12 speed
Brake Lever
  • Shimano 105
Front Brake
  • Shimano 105; Hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Rear Brake
  • Shimano 105; Hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Grip
  • Merida Expert
Handlebar
  • Merida Expert SLII; aluminium; 380mm (XXS-XS-S), 400mm (M-L), 420mm (XL)
Stem
  • Merida Team CC III; aluminium; 31.8mm diameter; -6 degree rise - Length - 90mm (XXS-XS-S), 100mm (M), 110mm (L-XL)
Head Set
  • 320.52.631
Saddle
  • Merida Comp SL; V-mount - made with 25% recycled material
Seat Post
  • Merida Expert CC; 27.2mm diameter; 15mm layback; Carbon
Wheel Size
  • 700c
Rims
  • Merida Expert SLII; 23mm inner rim width; 25mm rim depth; aluminium; Tubeless ready (tubeless tape and valves not included)
Spokes
  • Double Butted Black stainless
Front Hub
  • Shimano HB-TC500; 100 x 12mm; 28 spoke; Centerlock
Rear Hub
  • Shimano FH-TC500-HL; 142 x 12mm; 28 spoke; Centerlock
Front Tyre
  • Maxxis Detonator; 700 x 32C; Kevlar bead
Rear Tyre
  • Maxxis Detonator; 700 x 32C; Kevlar bead

Geometry
