- Full aluminium frame with FAST kinematic suspension and radical new enduro geometry
- Mixed or full 29er wheel set up with Agilometer sizing
- RockShox Domain and Deluxe suspension, proven Shimano 12-speed drivetrain
- Maxxis Double Down front and rear tyres
- 200mm dropper post on XL/L/M, 150mm on S, 125mm on XS
- Powerful 4-piston hydraulic disc brakes

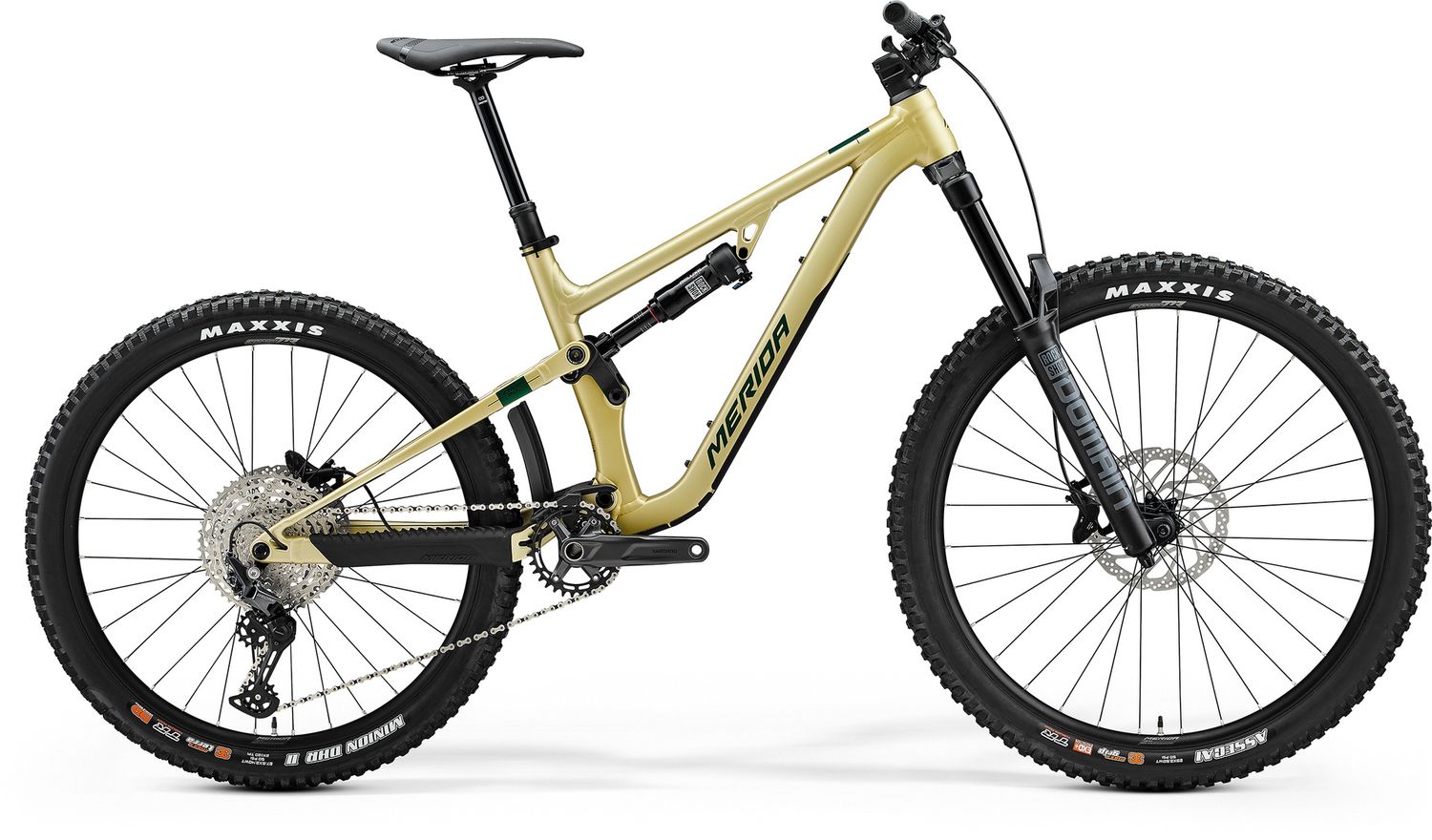

Bike Radar / MBUK gave Merida double honours crowning the One-Sixty 6000 Enduro bike of the year and the One-Forty 700 Trail bike of the year. Of the One-Sixty they said: "it was the Merida’s proportions, supportive suspension and electrifying ride feel that finally clinched it.“The fun we had riding some of the gnarliest trails around Dolceacqua, skimming over jagged rocks and drifting loose turns, meant it had to be the winner.” The all-new One-Sixty 500 gets a radical new geometry and suspension design in a tough all-aluminium frame package, paired to components that deliver rock-solid performance and ironclad value. A RockShox Yari fork and Deluxe shock can take the rough with the rougher, while the four-piston Shimano brakes and wide-range drivetrain are tough and consistent. The One-Sixty is a radical, all-new design that pushes Merida's hard-hitting enduro platform to new heights. Just as well, because once it’s there it’s ready to rip the longest, toughest descents too. Merida's new suspension system uses a flexstay design with an adjustable rocker, so whether you choose to run it as a full 29er (162mm travel) or mixed 29/27.5” setup (171mm travel), the geometry is preserved. There’s a radically steep 79° seat tube angle for goat-like climbing and slack 64° head angle plus 170mm fork to deal with downhill trail chaos. New sizing allows riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package, while carbon frame models offer on-board tool storage and FidLock magnetic bottle cages.
Specification
- Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5"
- RockShox Deluxe Select+; platform
- RockShox Domain R; Air; 170mm travel; Tapered; 44mm fork offset; Max tyre size: 29 x 2.8"
- 12
- Shimano Deore M6100 and Shimano SL-MT500-IL dropper post lever
- Shimano Deore M6100 Shadow+; SGS
- Shimano BB-MT-501; 24mm
- KMC X12
- Shimano MT512; 32 tooth chainset with Merida Expert TR chainguide; crank length: 170mm all sizes
- Shimano Deore M6100; 10-51 teeth; 12 speed
- Shimano Deore M6120
- Shimano Deore M6120; 4 piston hydraulic disc brake caliper with Shimano RT30; 203mm rotor
- Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT30 203mm rotor
- Merida Expert EC
- Merida Expert TR II; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise
- Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
- Acros ICR external neck; Upper and lower IPS sealing
- Not included
- Merida Comp SL with V-mount
- Merida Expert TR II; 34.9mm diameter; in-line; Drop: 150mm (XS/S), 170mm (M), 200mm (L/XL)
- 29" / 27.5"
- Merida Comp TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); Rear 27.5" for XS/S & M, 29" for L & XL
- Double Butted Black stainless
- Shimano TC500-B; 110x15mm; 32 spokes; Center lock
- Shimano TC500-MS-B; 148x12mm, 32 spokes; Center lock. With Merida Comp TR axle including removable lever, 6mm allen key
- Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR 3C MaxxGrip
- Maxxis DHR II; 27.5" x 2.4" for XS/S & M; 29" x 2.4" for L & XL; Kevlar bead, folding; TR DD 3C MaxxTerra
Geometry
