Merida One-Sixty 10K

£7 500.00
Available to order
Size
Please choose
Colour
Please choose
Available to order
Save this product for later
Have questions?
Share this product with your friends

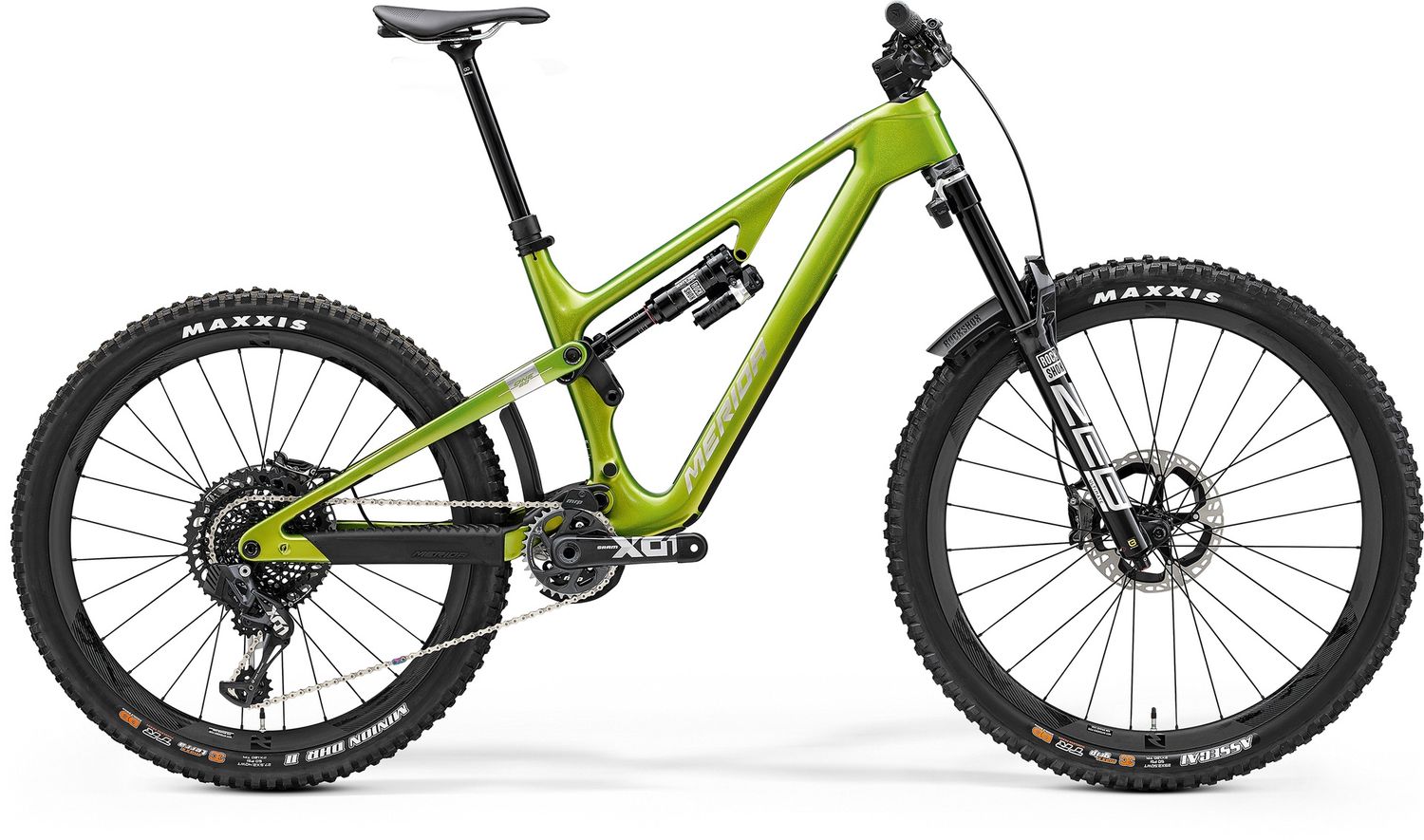

Merida One-Sixty 10K
Product Details
Brand: MERIDA
Highlights:
  • Full carbon frame with FAST kinematic suspension and radical enduro geometry
  • Mixed or full 29er wheel setup with Agilometer sizing
  • Smart RockShox Flight Attendant suspension
  • SRAM Eagle wireless drivetrain and tough but light Reynolds carbon wheelset
  • 230mm travel-adjustable dropper post
  • On-board tool storage and FidLock bottle cage
The best of everything! RockShox Flight Attendent suspension with SRAM Eagle XX1 1 x 12 wireless drivetrain. Reynolds Black Label Enduro wheelset, Shimano XTR 4 pot hydraulic disc brakes and travel adjustable dropper post.



Bike Radar / MBUK gave Merida double honours crowning the One-Sixty 6000 Enduro bike of the year and the One-Forty 700 Trail bike of the year. Of the One-Sixty they said: "it was the Merida’s proportions, supportive suspension and electrifying ride feel that finally clinched it.“The fun we had riding some of the gnarliest trails around Dolceacqua, skimming over jagged rocks and drifting loose turns, meant it had to be the winner.” With radical new geometry and the very best kit money can buy fitted to a lightweight but tough carbon frame, the new One-Sixty 10K has nothing to fear from the roughest, toughest tracks and race stages on the planet. Merida's new FAST kinematic design and full 29er or mixed wheel size setup is paired with top-end RockShox suspension including a burly 170mm Zeb fork and Super Deluxe shock, both with Flight Attendant smart lockout technology. We also fit a wide-range, top-end SRAM Eagle drivetrain for crisp wireless shifting. The One-Sixty is a radical, all-new design that pushes Merida's hard-hitting enduro platform to new heights. Just as well, because once it’s there it’s ready to rip the longest, toughest descents too. Merida's new suspension system uses a flexstay design with an adjustable rocker, so whether you choose to run it as a full 29er (162mm travel) or mixed 29/27.5” setup (171mm travel), the geometry is preserved. There’s a radically steep 79° seat tube angle for goat-like climbing and slack 64° head angle plus 170mm fork to deal with downhill trail chaos. New sizing allows riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package, while carbon frame models offer on-board tool storage and FidLock magnetic bottle cages.

Specification

Promotion Ribbon
  • Black Friday
Frame
  • CF4 carbon front and rear, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, storage trunk, flip chip for mullet or 29er. max tyre size - 2.5"
Shock
  • RockShox Super Deluxe Flight Attendant ; platform; adjustable low speed Compression
Fork
  • RockShox Zeb Flight Attendant; Air; 170mm travel; Tapered; 42mm fork offset; Max tyre size: 29" x 2.8"
Gears
  • 12
Shifters
  • SRAM AXS POD Ultimate and Shimano SL-MT800-IL dropper post lever
Rear Derailleur
  • SRAM XX Eagle Transmission AXS wireless
Bottom Bracket
  • SRAM DUB BSA 73mm wide
Chain
  • SRAM XX Eagle Transmission
Chainset
  • SRAM XX Eagle Transmission; 32 tooth chainset. 2x Chainguard. Crank length: 170mm
Cassette
  • SRAM XX Eagle 10-52 teeth; 12 speed
Brake Lever
  • Shimano XTR
Front Brake
  • Shimano XTR 4 piston hydraulic disc brake caliper with Shimano RT-MT900 203mm rotor
Rear Brake
  • Shimano XTR 4 piston hydraulic disc brake caliper with Shimano RT-MT900 203mm rotor
Grip
  • Merida Expert EC
Handlebar
  • Merida Team; TR; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise
Stem
  • Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
Head Set
  • Merida 8151 1-1/8"-1.5" cartridge bearing
Pedal
  • Not included
Saddle
  • Merida Expert SL with V-mount; including Merida minitool
Seat Post
  • Merida Team TR; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel
Wheel Size
  • 29" / 27.5"
Rims
  • Part of wheelset - Reynolds Black Label Enduro 289/287 I9; 28mm inner rim width; carbon; Tubeless ready (tubeless tape and valves included); Rear 27.5" for XS/S & M, 29" for L & XL; Lifetime warranty
Spokes
  • part of wheelset
Front Hub
  • Part of wheelset - Reynolds Black Label Enduro 289/287 I9; 110x15mm; Center lock
Rear Hub
  • Part of wheelset - Reynolds Black Label Enduro 289/287 I9; 148x12mm; Center lock; SRAM XD; With Merida Expert TR axle including removable lever, 6/4mm allen key
Front Tyre
  • Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR DD 3C MaxxGrip
Rear Tyre
  • Maxxis DHR II; 27.5" x 2.4" for XS/S & M; 29" x 2.4" for L & XL; Kevlar bead, folding; TR DD 3C MaxxTerra
Other
  • Fidlock Integrated Base & TWIST Bottle 600ml. Zeb short fender and rear long fender

Geometry
