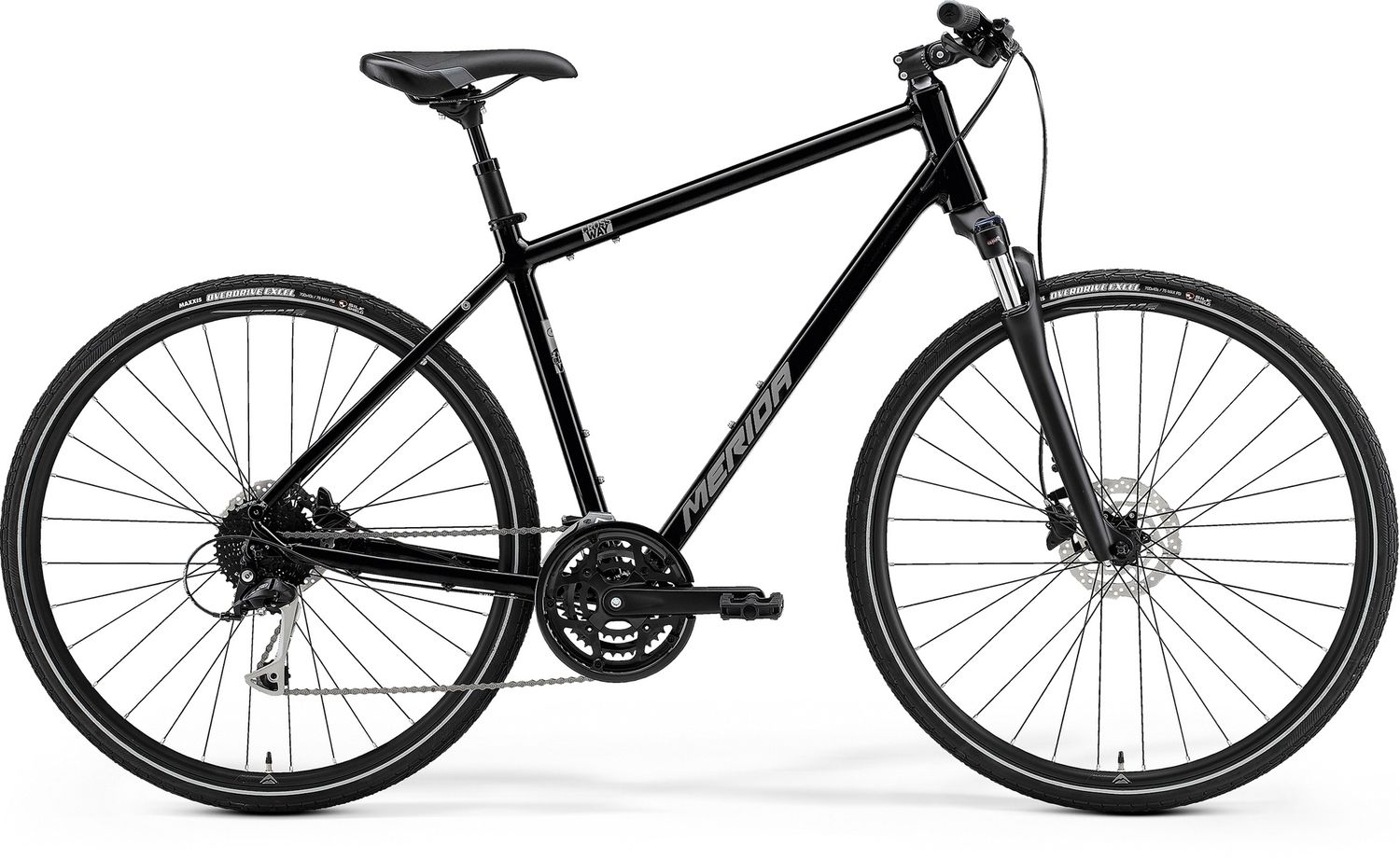

Merida Crossway 100
Product Details
Brand:
MERIDA
Highlights:
- Lightweight aluminium frame
- Suspension fork with lockout
- 27 speed drivetrain
- Adjustable stem and suspension seatpost
- Reflective strip on tyres
- Multiple fixing points for rear rack and mudguards
The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting. All disc brake models use the same lightweight aluminium frame with a steep, sloping top tube providing plenty of standover height. For ultimate adaptability, the Crossway range can be equipped with mudguards, racks and kickstands.
Specification
Frame
- TFS II - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
Fork
- Suntour NEX HLO; Coil; 63mm travel; Lockout. Max tyre size: 700 x 48c
Gears
- 27
Shifters
- Shimano Altus
Front Derailleur
- Shimano M370
Rear Derailleur
- Shimano Alivio
Bottom Bracket
- FSA TH-7420ST, Cartridge Bearing
Chain
- KMC M99
Chainset
- SAMOX, AF29-321SSS-P chainset. Crank length: 170mm (S), 175mm (M,L)
Cassette
- Shimano HG200; 11-34 teeth; 9 speed
Brake Lever
- Tektro HD-M275
Front Brake
- Tektro HD-M275 2 piston hydraulic disc brake caliper with Shimano RT10 160 mm rotor
Rear Brake
- Tektro HD-M275 2 piston hydraulic disc brake caliper with Shimano RT10 160mm rotor
Grip
- Merida Expert EC
Handlebar
- Merida Comp CC; aluminium; 660mm wide; 25mm rise
Stem
- Merida Comp TK; aluminium; 31.8mm diameter; adjustable - Stem length: 80mm (XXS/XS/S), 90mm (M/L), 100mm (XL)
Head Set
- Merida M2346 Neck
Pedal
- VP Components, VPE-891
Saddle
- Merida Cross Sport
Seat Post
- Merida TK; 30.9mm diameter; 10mm lay back; 40mm suspension travel
Wheel Size
- 700c
Rims
- Merida Comp TK; 20mm inner rim width; 17mm depth; Aluminium
Spokes
- Black stainless
Front Hub
- Shimano TX505; 100x9mm; 32 spokes; Center lock
Rear Hub
- Shimano TX505; 135x9mm; 32 spokes; Center lock
Front Tyre
- Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshield
Rear Tyre
- Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshield
Colour
- Black/Silver
Season
- 2023
Geometry
