- 1 x 9 Shimano CUES drivetrain
- RockShox Judy TK fork
- Shimano hydraulic disc brakes
- Sophisticated aluminium frame
- Tapered head tube
- Internal cable routing

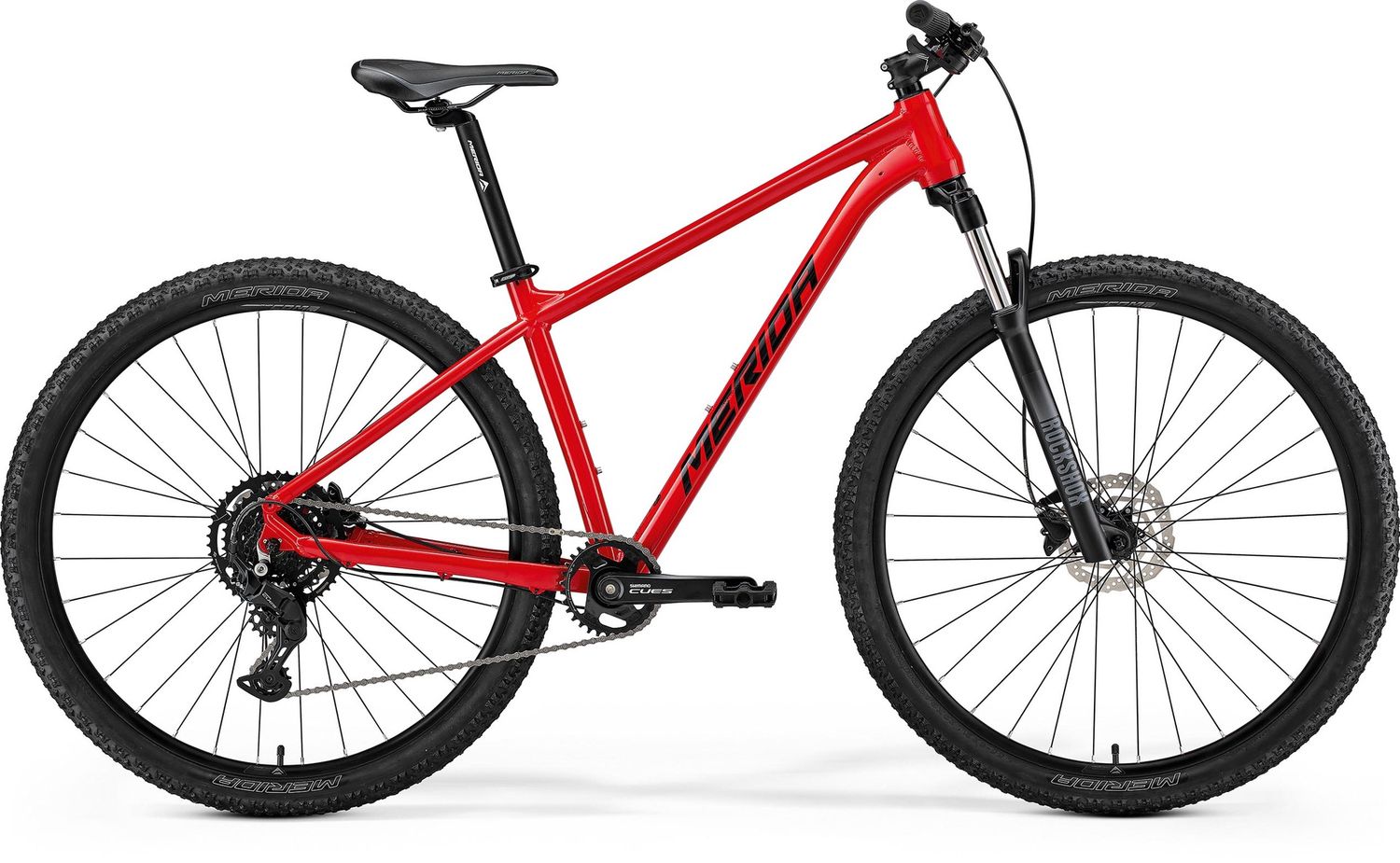

Merida's heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot. All Big Nine and Big Seven models use a sophisticated TFS frame featuring the latest technology: full internal cable routing for a clean, neat set up, tapered headtube offering the potential for future upgrades inboard disc brake mounts protect the brake and maximise stopping power As much Shimano componentry as possible has been added to complement the modern frame and enhance reliability. There are a wide range of sizes; Big Nine for taller riders and Big Seven for shorter riders with a healthy overlap between the two. For riders in the middle, riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine, if you are looking for agility choose a Big Seven.
Specification
- TFS IV - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.25"
- RockShox Judy TK; Coil; 100mm travel Lockout; 46mm fork offset; Max tyre size 29" x 2.25"
- 9
- Shimano Cues U4000-9
- Shimano CUES U4000-9; GS
- Shimano BB-UN101 73-123
- KMC xGlide
- Shimano CUES U4000; 32 tooth chainset; Aluminium; Crank length - 170mm (S), 175mm (M and up)
- Shimano CS-LG300-9; 11-46 teeth; 9 speed
- Shimano MT200
- Shimano BR-MT200; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
- Shimano BR-MT200; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
- Merida EC
- Merida CC; aluminium; 690mm wide; 15mm rise
- Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Length - 70mm (S), 80mm (M), 90mm (L), 100mm (XL), 110mm (XXL)
- Merida M2345
- VP VPE-891
- Merida Sport comfort
- Merida CC; 30.9mm diameter; 15 mm layback; Aluminium
- 29"
- Merida CC; 17mm inner rim width; aluminium
- Black steel
- Shimano HB-TX505; 100 x 9mm; 32 spoke; Centerlock
- Shimano FH-TX505; 135 x 9mm; 32 spoke; Centerlock
- Merida K1080; 29" x 2.2"; wire bead
- Merida K1080; 29" x 2.2"; wire bead
- Dark Red/Black
- 2025
Geometry
